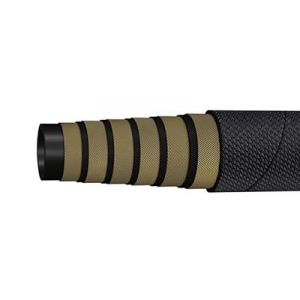

Construction
| Core | Black Color, Synthetic rubber resistant to oil and water |
| Reinforcement | Single steel wire braid |
| Cover | Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone |
| Application | Medium Pressure Hydraulic Lines 10 to 250 bar. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agriculture, Earthmoving & Material handling equipments and machineries/systems |
Note:
Use Item Code PH553 for low temp (-55°C to + 100°C); PH255 for high temp MSHA Cover (-40°C to +135°C); PH291 for ultra high temp MSHA Cover (-40°C to +150°C ) PH298 for UHMWPE cover; Sizes 2-1/2″ to 4″ are not covered under SAEJ517-100R1AT/EN 853-1SN
Temperature Range:
Continuous: -40°C to +100°C Intermittent: +120°C
Impulse Cycles:
150,000; Tested upto 300,000 cycles, upto 1″ I.D
